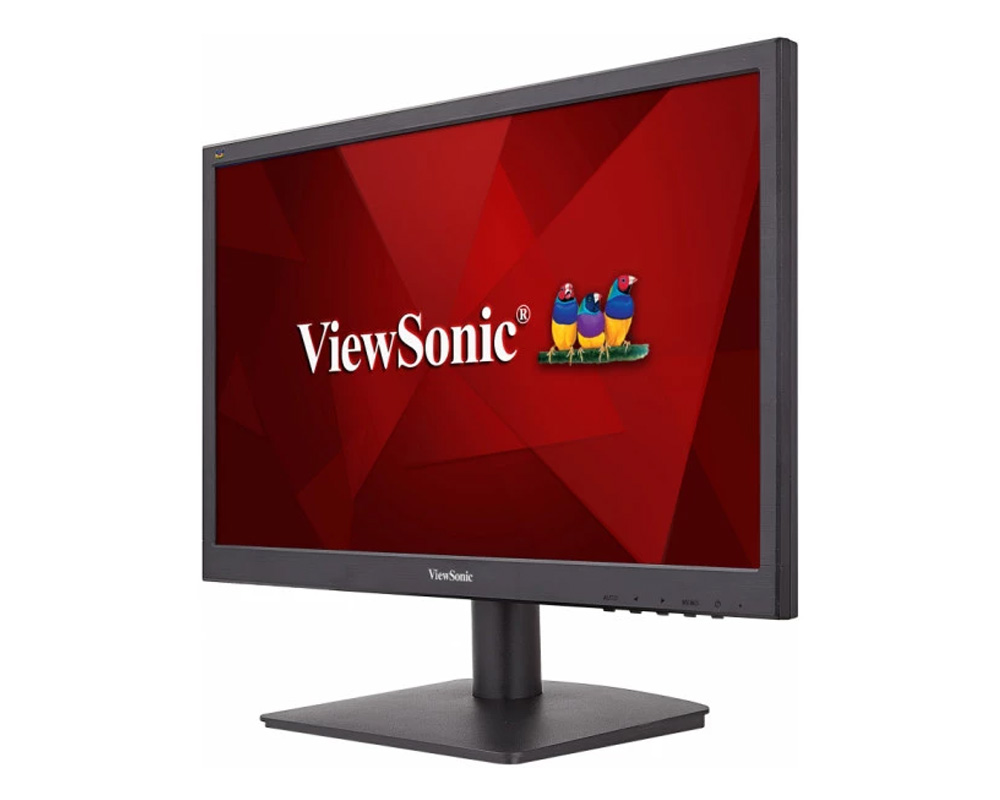

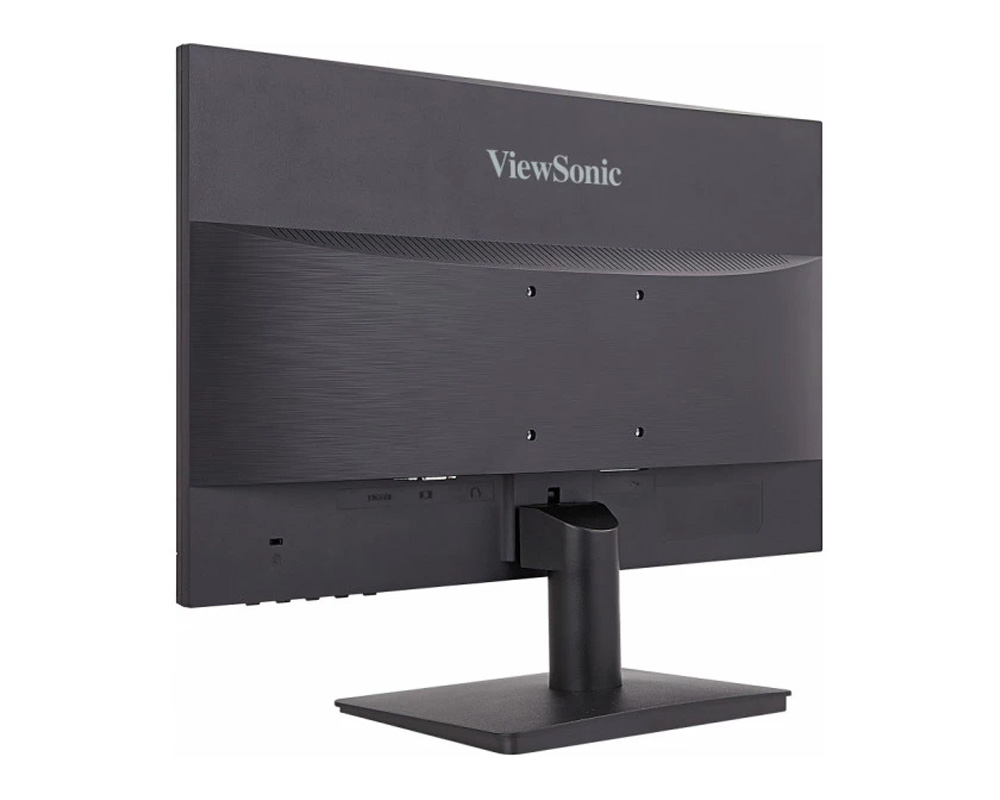

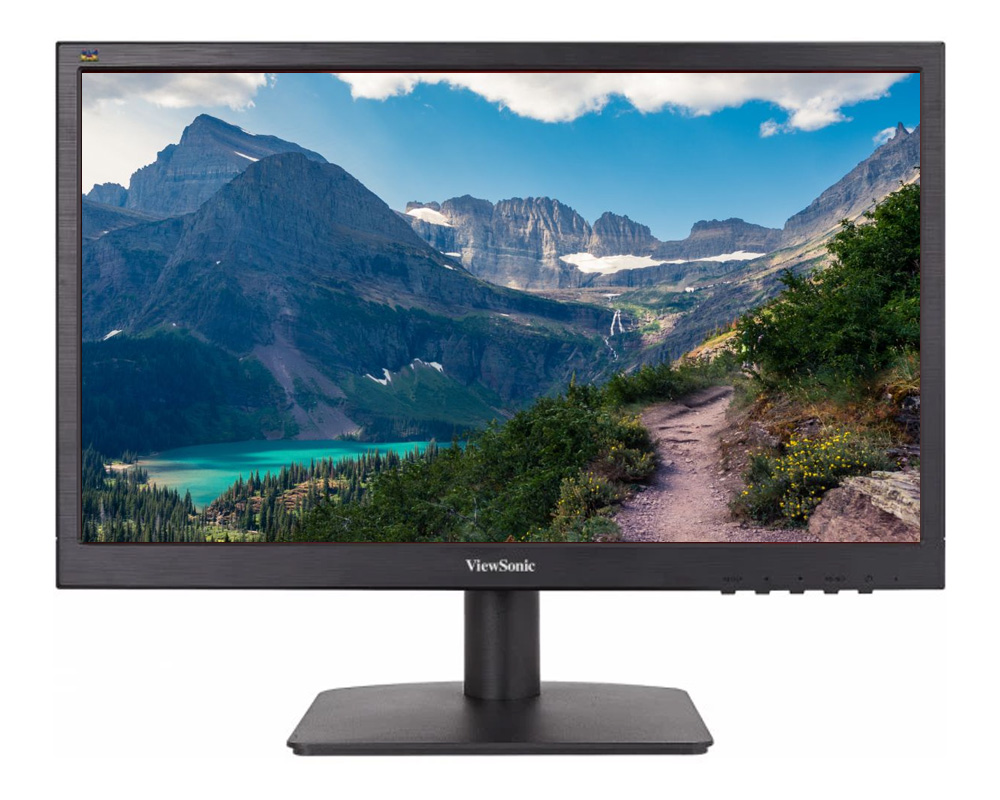

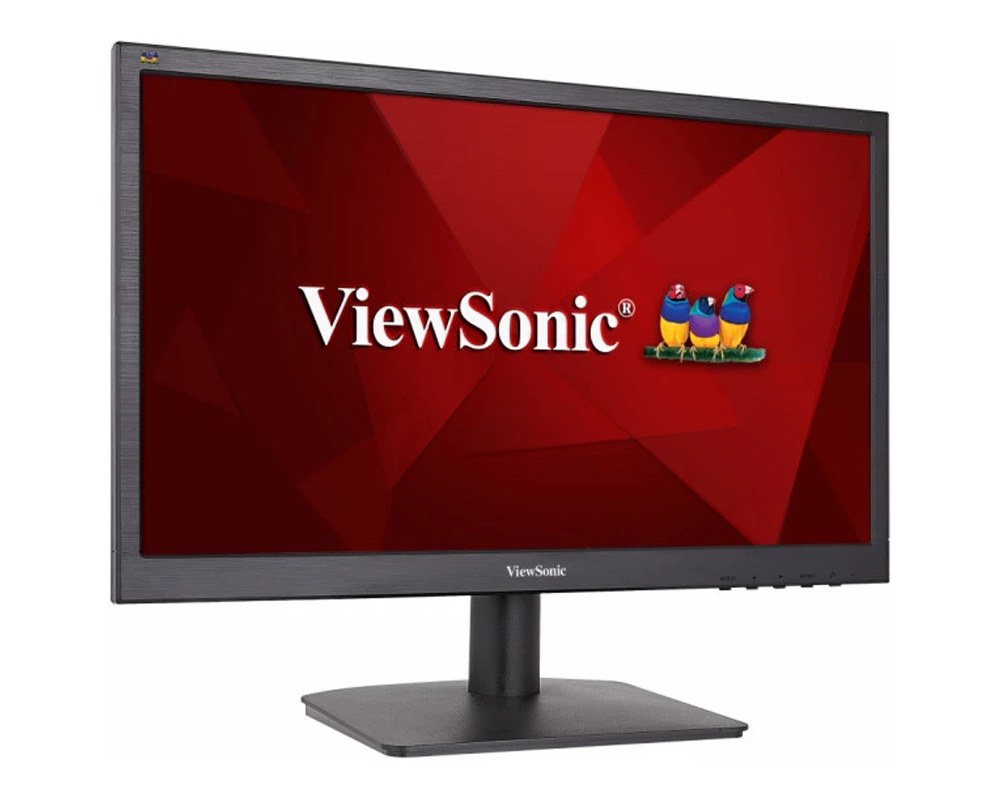

ViewSonic 19″ Monitor – VA1903H

Description

Superior Colour Rendering & Intuitive Settings

ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,”Mac,” and “Mono” presets. These presets enhance
gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications.

Specification

DISPLAY

DISPLAY SIZE (IN.)
19

VIEWABLE AREA (IN.)
18.5

PANEL TYPE
TN

RESOLUTION
1366 x 768

RESOLUTION TYPE
HD (1366×768)

STATIC CONTRAST RATIO
600:1

DYNAMIC CONTRAST RATIO
50,000,000:1

LIGHT SOURCE
LED

BRIGHTNESS
200 cd/m2

COLORS
16.7M

COLOR SPACE SUPPORT
6 bit + 2 bit Hi FRC

ASPECT RATIO
16:9

RESPONSE TIME (TYPICAL GTG)
5ms

VIEWING ANGLES
90º horizontal, 65º vertical

BACKLIGHT LIFE (HOURS)
30,000

PANEL SURFACE
Anti-glare, Hard coating (3H)

COMPATIBILITY

PC RESOLUTION (MAX)
1366 x 768

MAC RESOLUTION (MAX)
1366 x 768

CONNECTOR
3.5MM AUDIO OUT
1

VGA
1

HDMI 1.4 IN
1

POWER

ECO MODE (CONSERVE)
9.5W

ECO MODE (OPTIMIZED)
12.5W

CONSUMPTION (TYPICAL)
15.3W

CONSUMPTION (MAX)
17W

VOLTAGE
AC 100-240V (universal), 50-60Hz

STAND-BY
0.5W

POWER SUPPLY
Internal

ADDITIONAL HARDWARE

KENSINGTON LOCK SLOT
1

CONTROLS

PHYSICAL CONTROLS
Key Buttons 1, 2, 3, 4, 5 (Power)

ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

OPERATING CONDITIONS

TEMPERATURE
32-104º F (0 – 40º C)

HUMIDITY (NON-CONDENSING)
20-90%

MOUNT
VESA COMPATIBLE
75 x 75 mm

VIDEO SIGNAL

FREQUENCY HORIZONTAL
15 ~ 82 KHz

FREQUENCY VERTICAL
50 ~ 75 Hz

VIDEO INPUT
DIGITAL SYNC
TMDS
